Interior · Bolt-on, no drilling
Honda Acty HA4 Double Cup Holder
A double cup holder for the Honda Acty HA4 that bolts to the side of the center console using the truck's existing bolt holes, so there's nothing to drill. It has two 73 mm openings with open bottoms, so tall bottles drop straight through. Hardware is included.
- Fits
- Honda Acty HA4 truck, and trucks with the same center console
- Mounting
- Existing console bolt holes, no drilling
- Openings

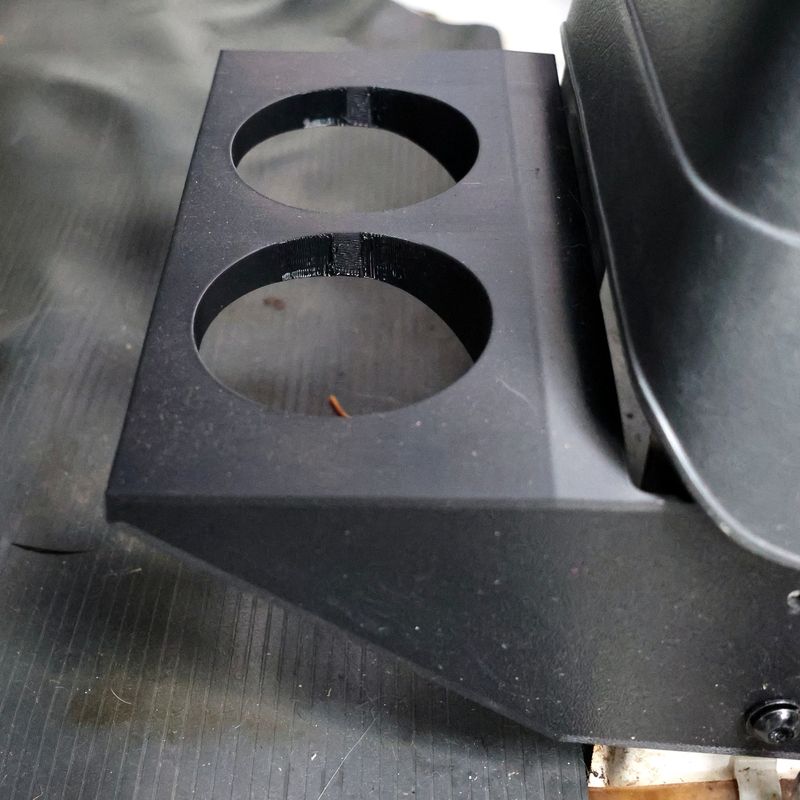

- Two, 73 mm across, open bottom
- Size
- About 202 × 185 × 90 mm overall
- Included
- Cup holder + mounting hardware
- Material
- PETG, 3D printed
- Shipping
- Free US shipping, sold through Etsy
Photos
How it mounts

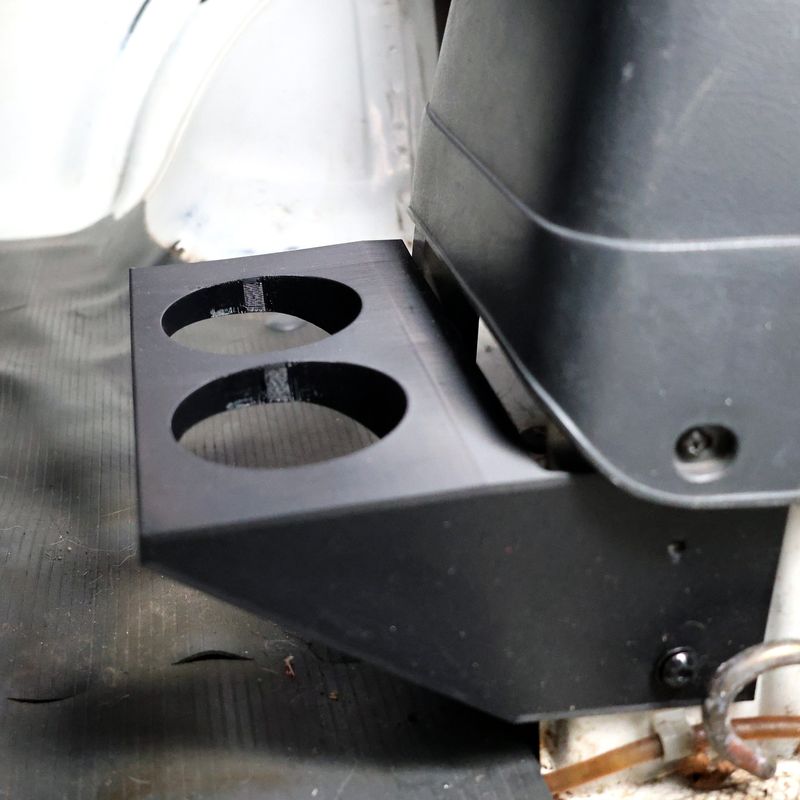

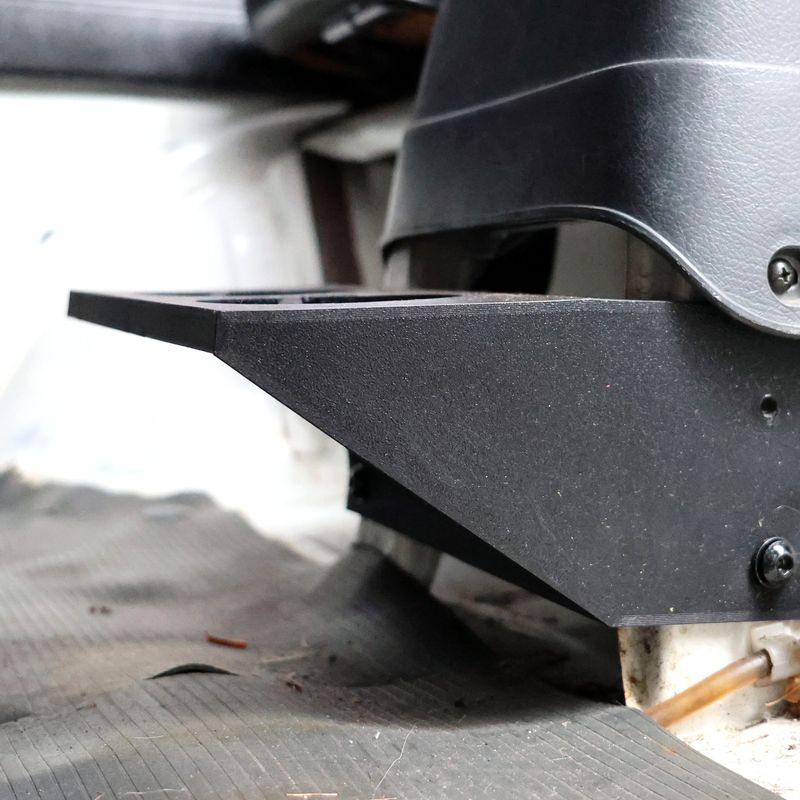

The holder bolts to the side of the HA4 center console through the bolt holes that are already there. Nothing gets drilled or cut, so it comes back off cleanly. I designed it around my own truck's console and include the hardware.

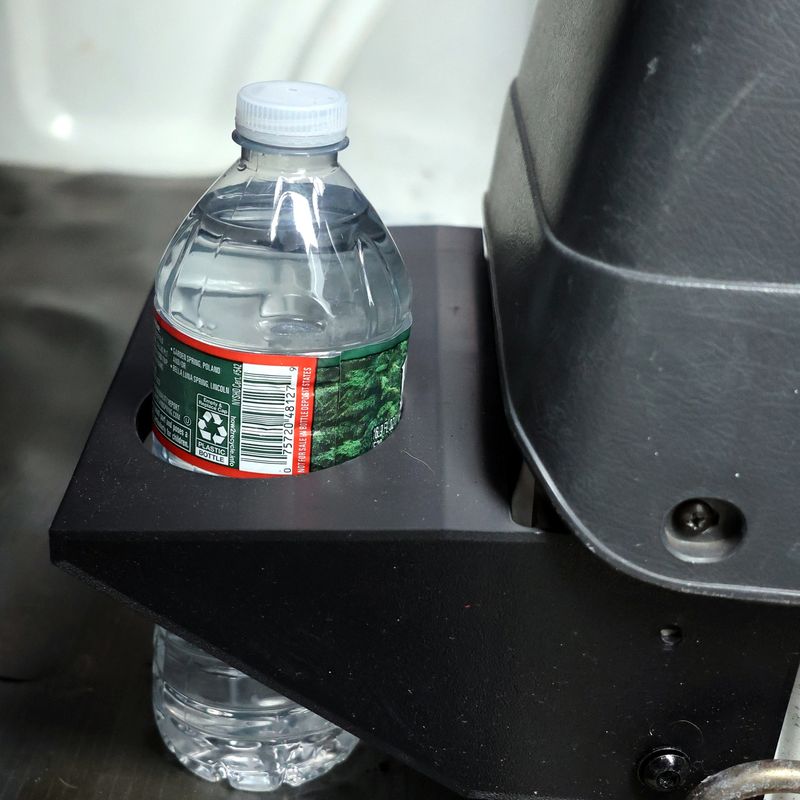

The bottoms are open, so a tall bottle sits low and stays put instead of tipping.
Fitment
Find your model code on the frame plate or registration. Tested means fit-checked on my own truck, Fits means it's the same part on that model, and Ask means not confirmed yet.
Questions
Will the cup holder fit my HA3 or Acty van?
It's designed for the HA4 center console and fits trucks with that same console. For an HA3 or an HH3/HH4 van, send me a photo of your console first.
Do I need to drill anything?
No. It uses the existing bolt holes on the console, and the hardware is included.
How big are the cup openings?
Each opening is 73 mm across, with an open bottom so taller bottles pass through.
